THE VARIATION OF CURRENT (I) WITH P.D. (V) FOR (d) SEMICONDUCTOR DIODE

part2 :Reverse Bias

Procedure – Reverse Bias

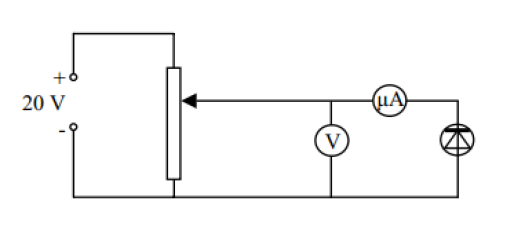

1. Set up the circuit as above and set the voltage supply at 20 V.

circuit

2. The microammeter is used in this part of the experiment, as current values will be

very low when a diode is in reverse bias.

3. Adjust the potential divider to obtain different values for the voltage V and hence

for the current I.

4. Obtain at least six values for V (0-20 V) and for I using the voltmeter and the

microammeter. Higher voltage values are required for conduction in reverse bias.

5. Plot a graph of I against V and join the points in a smooth, continuous curve.
